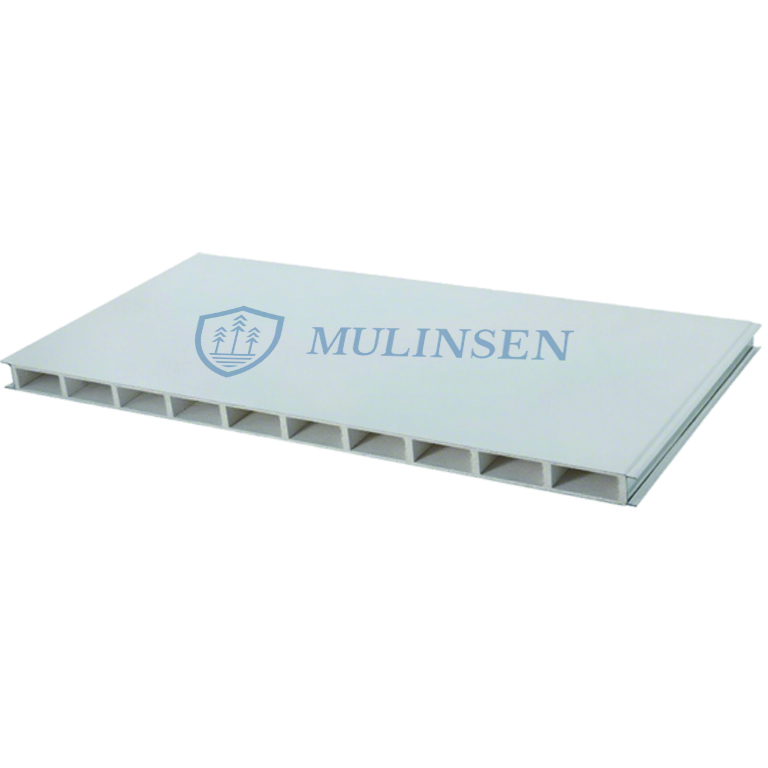

MgO Sandwich Panel

MgO Sandwich Panel is a non-combustible sandwich panel designed for cleanroom and industrial applications. It provides high structural strength, fire resistance, and a smooth hygienic surface suitable for controlled environments.
Spec 50mm
Model 1150mm
Get Quote (WA)
Detail

【Key Advantages】

  • A1 Fire Rated (Non-combustible)
    Core material does not burn or melt under fire conditions

  • High Rigidity & Strength
    Dense MgO core ensures excellent stability and impact resistance

  • Hygienic Surface
    Smooth, non-porous finish, easy to clean and maintain

  • Good Moisture Stability
    Suitable for controlled humidity environments

  • Durable & Long Service Life
    Resistant to deformation and aging

【Technical Specifications】

  • Core Material: Magnesium Oxide (MgO)

  • Panel Thickness: 50 mm

  • Steel Thickness: 0.4 – 0.5 mm (BMT)

  • Effective Width: 1150 mm

  • Length: Customized

  • Surface Type: Flat / Ribbed

  • Density: 12 – 15 kg/m²

  • Thermal Conductivity: 0.12 – 0.21 W/m·K

  • Fire Rating: Class A1

  • Sound Insulation: 25 – 30 dB

  • Coating: Normal/Antibacterial

【Applications】

  • Cleanroom (Pharmaceutical / Electronics)

  • Hospitals & Laboratories

  • Food Processing Facilities

  • Industrial Workshops

  • Modular Buildings

【Optional】

  • Anti-bacterial coating (food / medical grade)

  • Custom color (RAL)

  • Steel brands (BlueScope / Other brands)

  • Joint system options

【Important Notes】

  • Color may vary slightly due to lighting conditions

  • Final specification is subject to actual production

  • For high humidity or outdoor applications, installation method and sealing should be confirmed
