Antibacterial sandwich panel

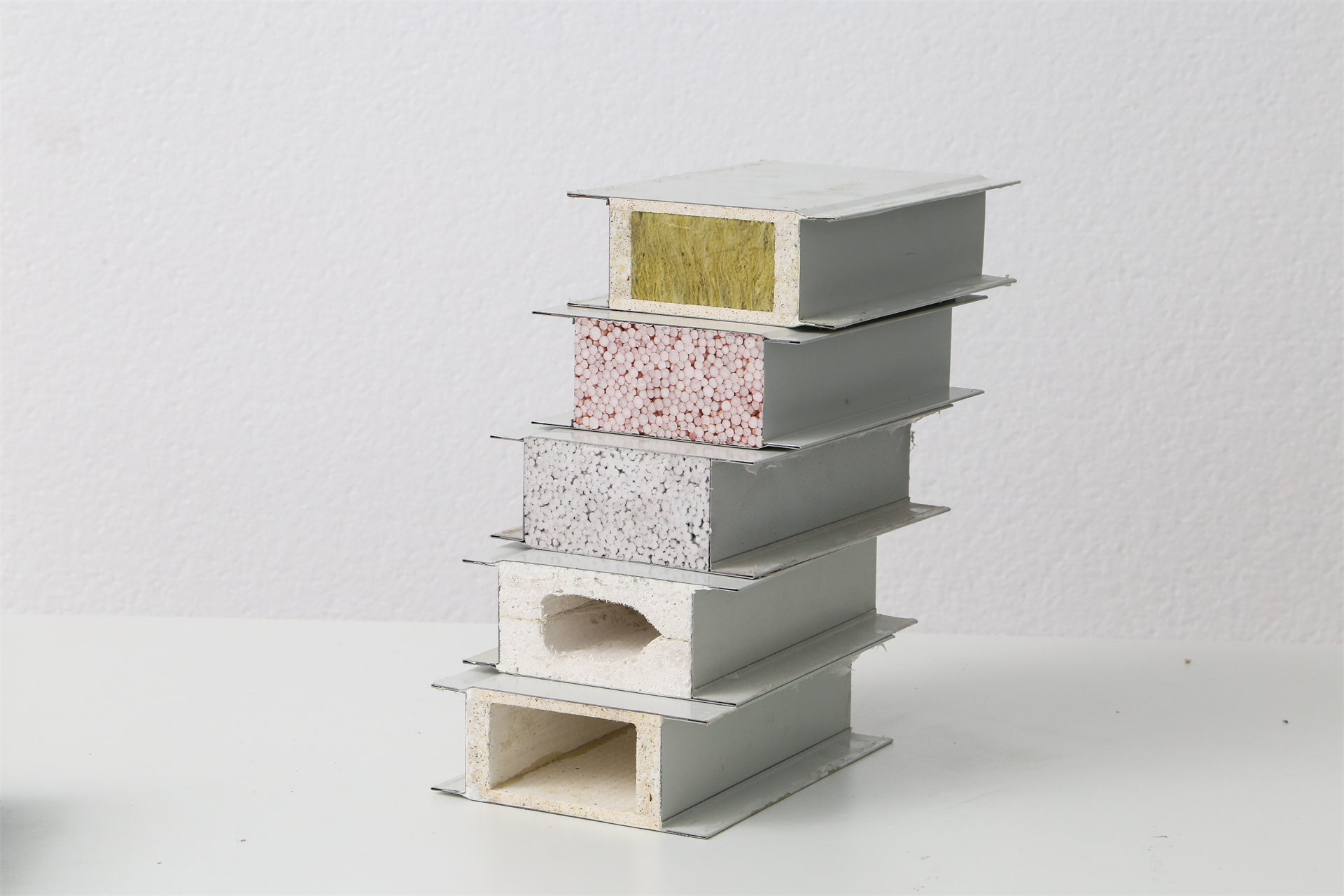

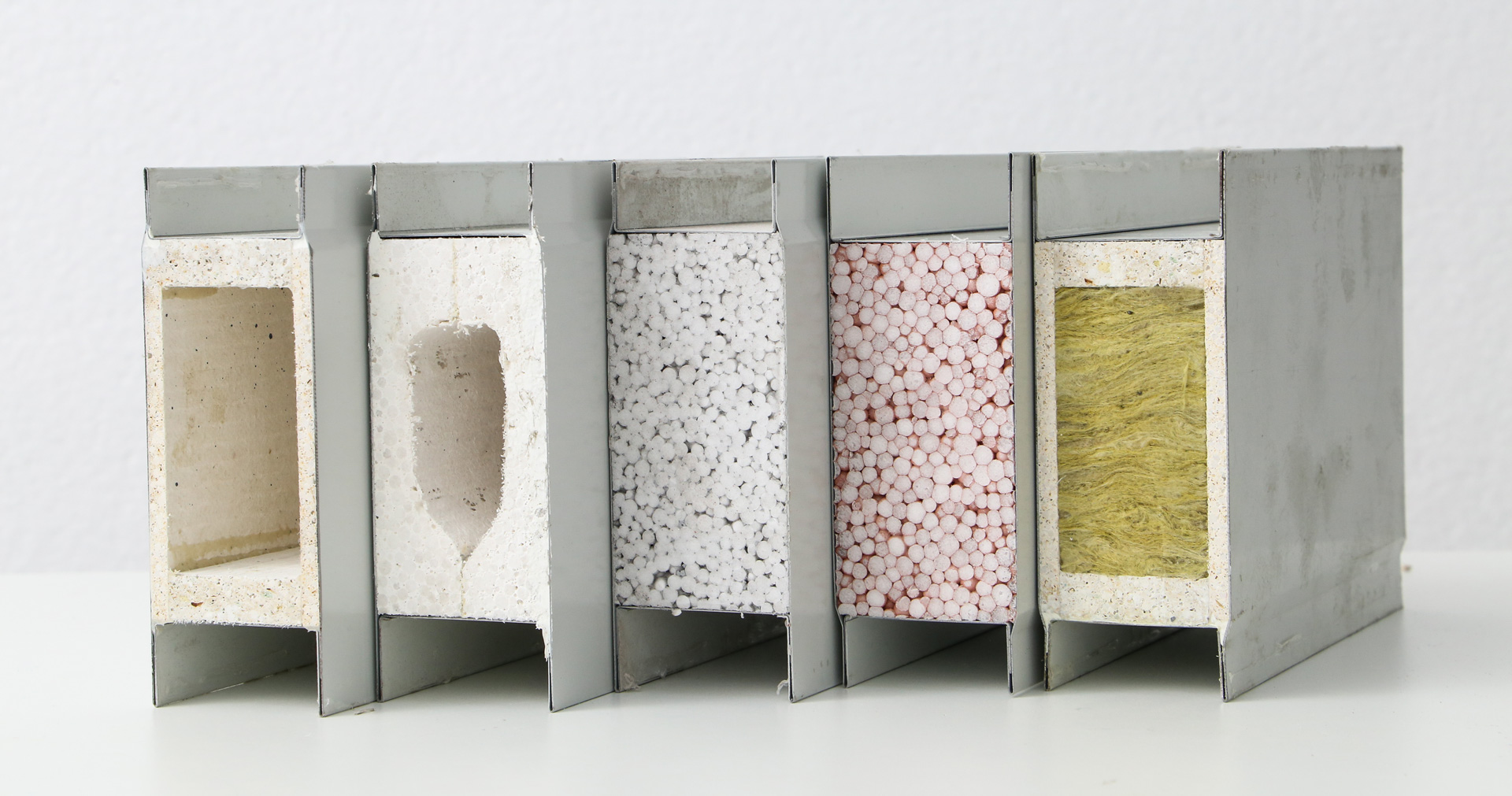

Antibacterial Sandwich Panel is a hygienic insulated panel designed for cleanroom, medical, food processing, and industrial applications. Its main advantage lies in the antibacterial coated surface or antibacterial steel sheet, which helps maintain a cleaner and more hygienic environment. According to project requirements, the core can be configured as EPS, Rockwool, MgO, or TPS, providing flexible solutions for thermal insulation, fire resistance, structural strength, and cost control.
Spec 50/75/100mm
Model 1170mm
Get Quote (WA)
Detail

【Key Advantages】

  • Antibacterial Surface Protection
    Antibacterial coated steel surface helps improve cleanliness and hygiene management

  • Flexible Core Options
    Core can be selected as EPS, Rockwool, MgO, or TPS according to project requirements

  • Clean & Easy to Maintain
    Smooth surface is easy to clean and suitable for controlled environments

  • Good Thermal Insulation
    Suitable core configuration can provide reliable thermal insulation performance

  • Widely Applicable
    Suitable for medical, food, pharmaceutical, laboratory, and industrial applications

【Technical Specifications】

  • Product Type: Antibacterial Sandwich Panel

  • Core Options: EPS / Rockwool / MgO / TPS

  • Panel Thickness: 50 mm / 75 mm / 100 mm

  • Steel Thickness: 0.3 mm – 0.6 mm (customizable)

  • Effective Width: 1170 mm

  • Length: Customized

  • Surface Type: Flat

  • Surface Finish: Antibacterial coated steel / antibacterial pre-painted steel sheet

  • Coating Option:   antibacterial

  • Application: Wall and ceiling systems for hygienic environments

【Applications】

  • Cleanroom partition systems

  • Pharmaceutical factories

  • Food processing plants

  • Hospitals and clinics

  • Laboratories

  • Electronics workshops

  • Industrial buildings with hygiene requirements

【Optional】

  • Core material selection based on project needs

  • Different steel thickness

  • Different colors

  • Flat or ribbed surface

  • Customized length

  • Anti-bacterial steel brands or coating systems upon request

【Important Notes】

  • Core material should be selected according to project requirements for fire resistance, insulation, and structural performance

  • Antibacterial performance may vary depending on the steel sheet, coating system, and application environment

  • Color may vary slightly due to lighting and photography

  • Final specification is subject to actual production and delivery
